Trig TT23G Transponder + ADS-B Out

Trig TT23G Transponder + ADS-B Out

$ 2,665 USD
$ 2,665 USD
Sale Sold out

NOTE: This item (including options) may be subject to tariff surcharges.

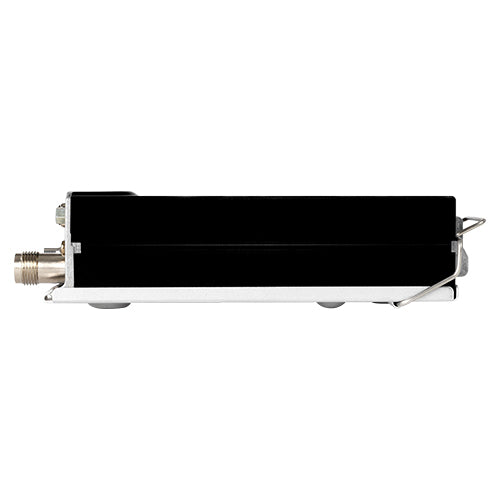

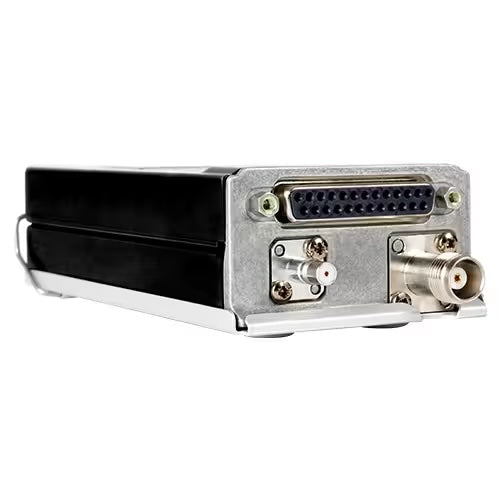

Trig's TT23G remote-mount transponder is compact, efficient, and can be controlled directly from FlightView. With an integrated WAAS position source the TT23G covers both transponder and ADS-B out requirements.

Note: This item replaces the TT22 / TN72 combination offered previously.

Bundle Includes:

  • Trig TT23G Compact Remote Transponder
  • Mounting tray and installation kit

Options:

  • Standard length 39" (1m) wiring harness: +$240
  • Extended length 118" (3m) wiring harness: +$270
  • TA50 glare shield GPS antenna with 39" (1m) cable: +$105
  • TA50 glare shield GPS antenna with 118" (3m) cable: +$110
  • TA70 External WAAS GPS Antenna: +$394

TT23G Transponder

Features:

  • Class 1 Mode S and 1090ES ADS-B Out capable
  • 250 watts nominal output power
  • Certified for IFR / VFR flight
  • FAA TSO Certification – TSO-C166b the latest ADS-B standard
  • Free FAA ADS-B STC for 576 aircraft types
  • Two year warranty from date of install, U.S. based technical support



Includes:

  • Transponder unit
  • Mounting tray
  • User manual

Specifications:

Weight:
0.8 lb

Dimensions transponder with tray:
1.8 x 2.6 x 6.2 in (48 x 68 x 160 mm)

Type:
Transponder Class 1 Mode S level 2els ADS-B Class B1

FAA 2020 ADS-B airspace compliant capable:
Yes

Supply Voltage:
9 VDC — 33 VDC

Typical consumption (at 14v):
Idle: 0.15A
Active: 0.34 A

Nominal Transmitter Power:
250W @ connector

Operating temperature:
Transponder: -40°C to 70°C
Controller: -25°C to 70°C

Cooling requirement:
No fan required

Certification:
ETSO C88A, C112C, C166A TSO C88b, C112c, C166b, approved for IFR and VFR flight

Compliance:
ED-73C, DO-160F, DO-178B Level B, DO-254 Level C, DO-260B, DO-181D


Optional TA50 Antenna

Features:

  • Optimized to be used as a GPS position source
  • Lightweight and easy plug-in-play installation
  • Weatherproof
  • Meets FAR 91.227 when used with TN72
  • Complete with a secure and reliable QMA connector

Specifications:

Dimensions:
23 x 26 x 12 mm

Cable Length:
39" (100 cm) or 118 in (300 cm)

Frequency:
1575.42 ±3 MHz

Antenna Gain:
>1 dBic

VSWR:
1.5:1

Filtering:
-20 dB, minimum

Noise Figure:
1.5 dB, maximum

Gain:
26 dB

DC Power Requirements:
3 VDC — 5 VDC

Temperature:
-40°C to 85°C


NOTE: Tariffs may apply to this product (manufactured in Scotland, ships from France). Tariff charges will be billed separately and must be paid before your order can ship.
