iPad Charging + Hardwired Data Kit - USB-C iPads
Falken Avionics recommends a hard-wired data connection for the primary iPad in every FlightView installation This kit includes an USB-C Ethernet adapter for the data connection and a high-power USB-C charger to keep your iPad fully charged on even the longest cross country flight. Components include:

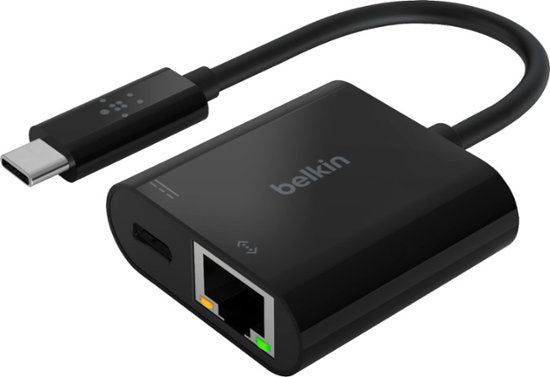

- Belkin USB-C to Ethernet data adapter
- 48 watt USB-C Power Delivery (PD) charger
- USB-C High Capacity Charge / Data Cable - 3' / 1 m

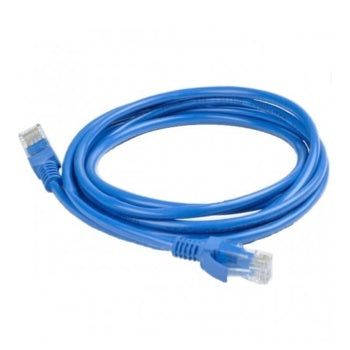

- Ethernet cable - 3' / 1 m

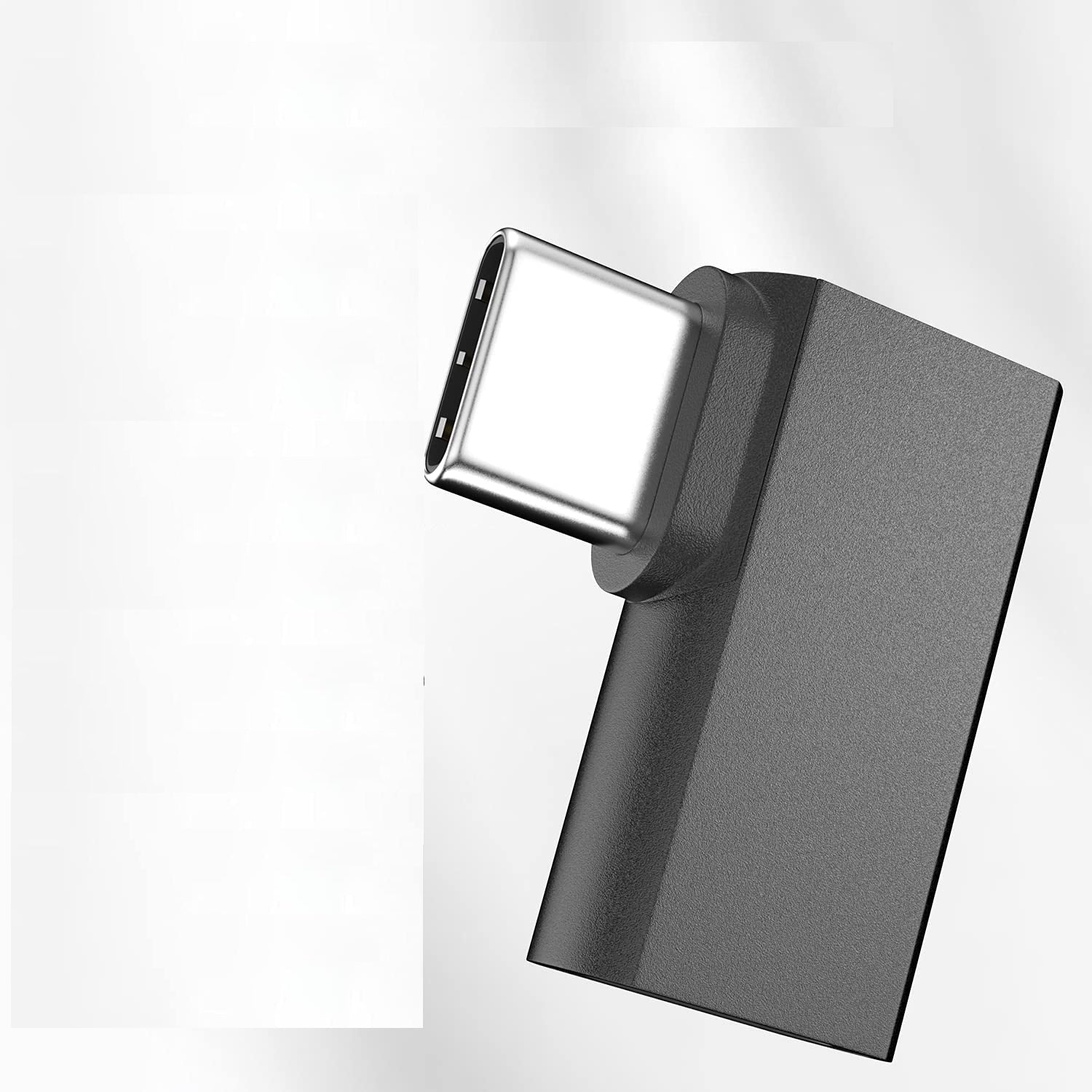

- 90° USB-C adapter
The 48 watt USB-C charger comes permanently mounted in a 12v socket. The 3' USB-C cable connects the charger to the Belkin adapter. The USB-C plug on the Belkin adapter is fed through a hole in the panel and the 90° adapter is used to connect it to the USB-C port on the iPad. The Ethernet cable is use to connect the Ethernet port on the adapter to the ethernet jack on the Flight Data Computer.
NOTE: this kit includes charging and USB-C to Ethernet components. For charging only (no data connection) you will want to order the "iPad Charging Kit - USB-C iPads"
