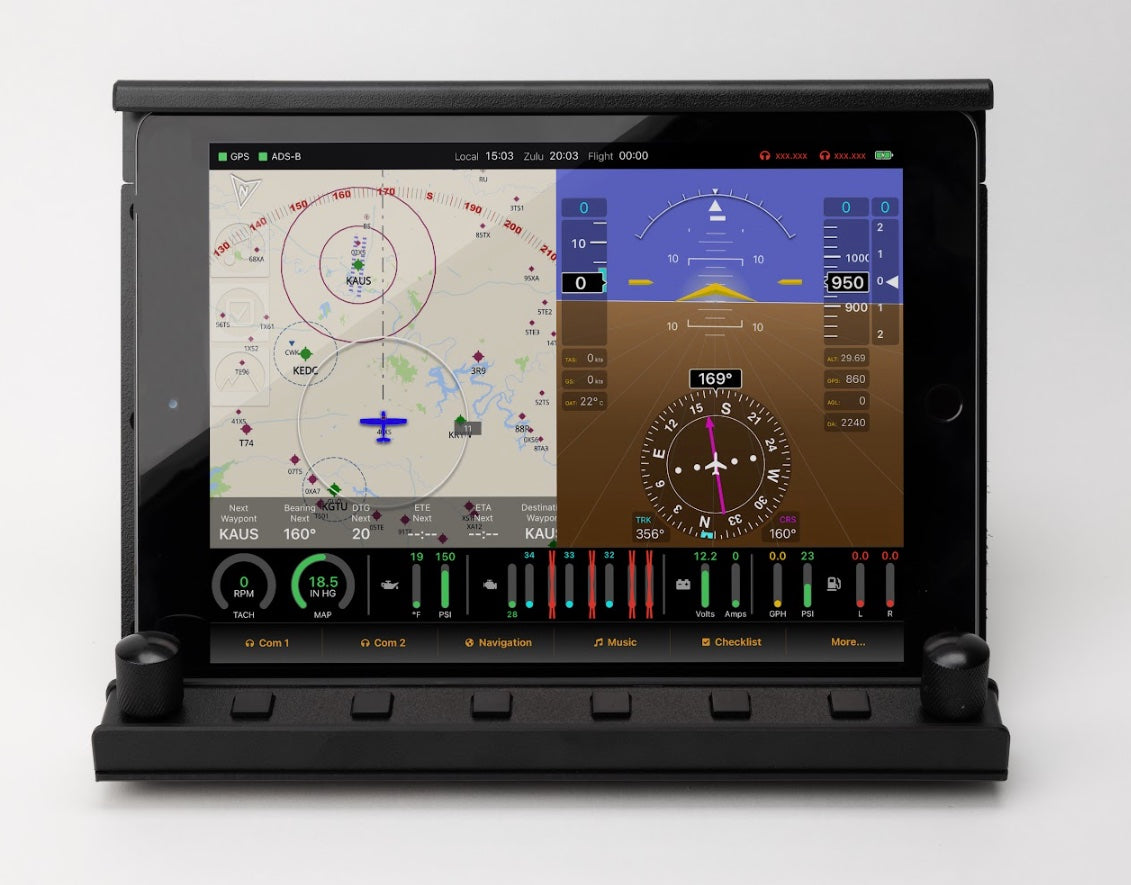

FlightDock iPad Mount
FlightDock is an iPad mount built to handle the harsh conditions of the GA cockpit. Made from powder-coated laser cut aluminum, FlightDock can safely hold and cool any 9.7", 10.5", 11", or 12.9" iPad model. (That's everything except the iPad Mini.)
The cooling system is thermally controlled, blowing a constant stream of air at low volume when things are cool, and blasting a the iPad at high speed when things get hot.

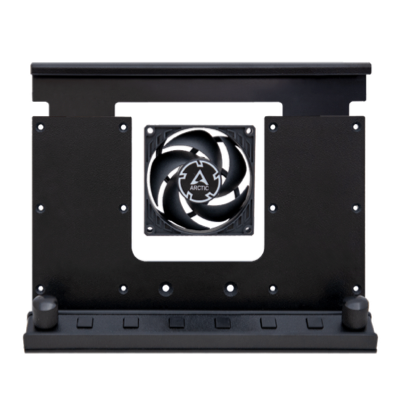

The mount includes a fixed bottom rail and a sliding top rail. The entire assembly mounts on the front of the panel using standard #6 screws. No giant, precision cuts required.
The fan mounts in a standard 3 1/8" instrument hole and is powered by 14v ship's power.
FlightDock includes pre-drilled mounting holes for our FlightBar (the knobs and buttons add-on).
- Lower fixed bracket
- Upper sliding bracket
- Mounting hardware
- 80mm PWM cooling fan
- 14v fan controller
NOTE: FlightBar, pictured above, is sold separately
