Astra Mini EFIS
The Astra Mini EFIS is Falken Avionics’ compact electronic flight instrument for Experimental and Light-Sport Aircraft (E/LSA). It delivers the essential capabilities of a modern glass cockpit in a rugged, space-saving package—perfect for tight panels, weight-sensitive builds, or as a high-performance primary or backup instrument.
Astra integrates primary flight instrumentation, offering the power and situational awareness of “big glass” systems for the price and footprint of “small glass.” With flexible connectivity and compatibility with the Falken FlightView app on iPad, Astra helps builders and pilots achieve modern avionics without compromising on budget or panel space.
Astra is currently in limited release (i.e. limited quantity available). Orders will begin shipping in August 2025.
Ideal for:
- Experimental / Amateur-Built Aircraft
- Light-Sport Aircraft (LSA)
- Ultralight and Light Experimental
- Backup EFIS for larger glass panels
Brilliant Display
- High brightness full-color Retina class LCD
- Diagonal Size: 4 inches
- Resolution: 720 x 720
- Wide viewing angles

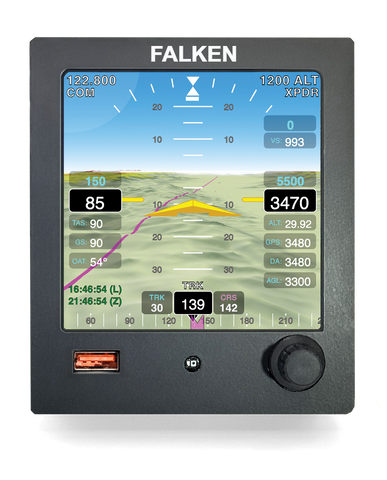

Primary Flight Display
- Attitude with Synthetic Vision
- Altitude: MSL, AGL, GPS Altitude
- Airspeed: IAS, TAS, GPS Ground Speed
- Magnetic Heading (with optional Magnetometer)
- GPS Ground Track
Attitude & Air Data
- MEMS solid-state AHRS
- Pitch, roll, slip/skid
- True and Indicated Airspeed
- Altitude and vertical speed
- Barometric pressure readout and setting
- Heading (GPS-derived or optional external magnetometer)
- Outside Air Temperature (OAT)

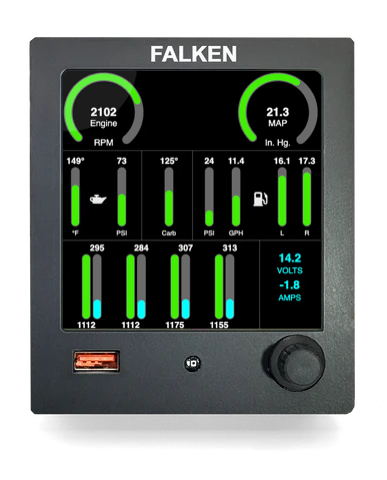

Engine Monitoring
Compatible with Falken EMS engine monitor. Display includes:
- RPM
- MAP
- Oil temperature & pressure
- CHT / EGT for up to 6 cylinders
- Fuel flow, pressure and fuel levels
- Volts / Amps
- Coolant temperature (liquid-cooled engines)

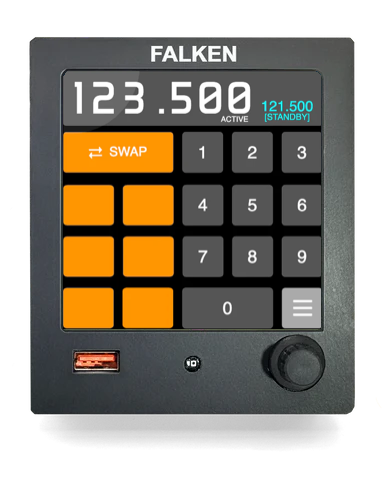

COM Radio support for:
- Trig TY91
- VAL Avionics 2KR
- Garmin GTR200, 200B
- SL-30 / SL-40 protocol radios

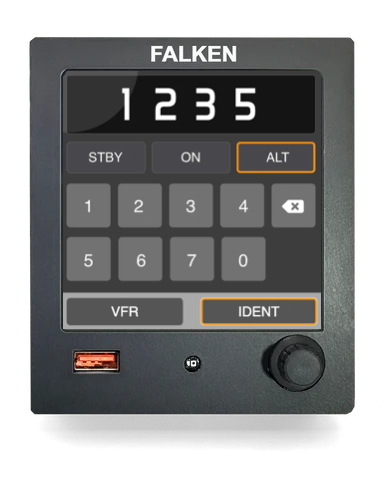

Transponder support for:
- Trig TT21/TT22
- uAvionix tailBeaconX
Connectivity & Integration
- CAN bus interface (1) - connects with Falken EMS, Falken Magnetometer, engines with CAN ECU
- RS-232 interface (1) - connects with uAvionix TailBeaconX, autopilots, or radios
- RS-485 interface (1) - connects with Trig transponders and radios
- Wifi
- Ethernet
- USB
Box Includes
- Astra EFIS
- Mounting Brackets
- WAAS GPS Receiver
- OAT Probe
Optional
- Connector Kit
- Magnetometer
- Engine Monitor
